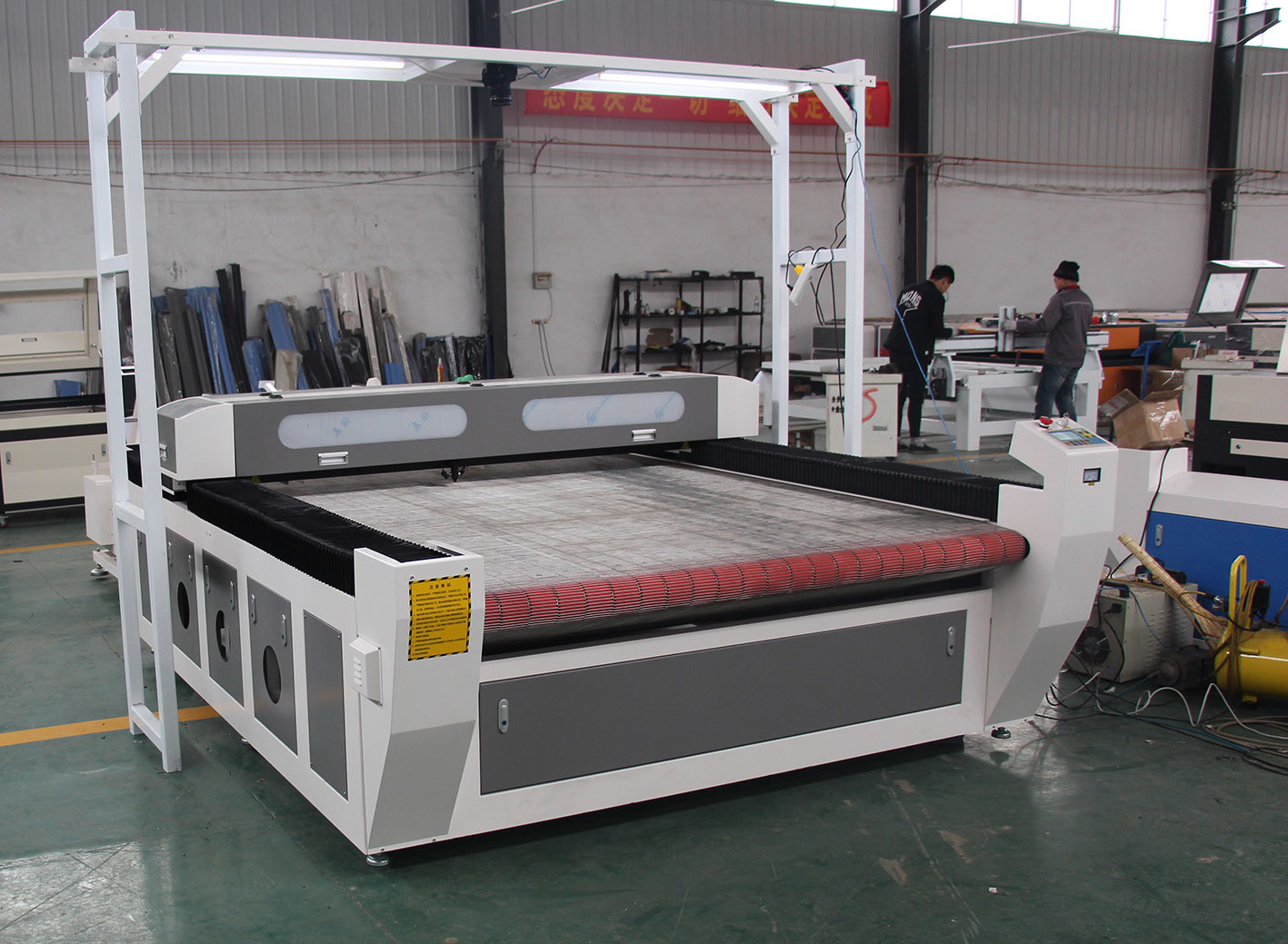

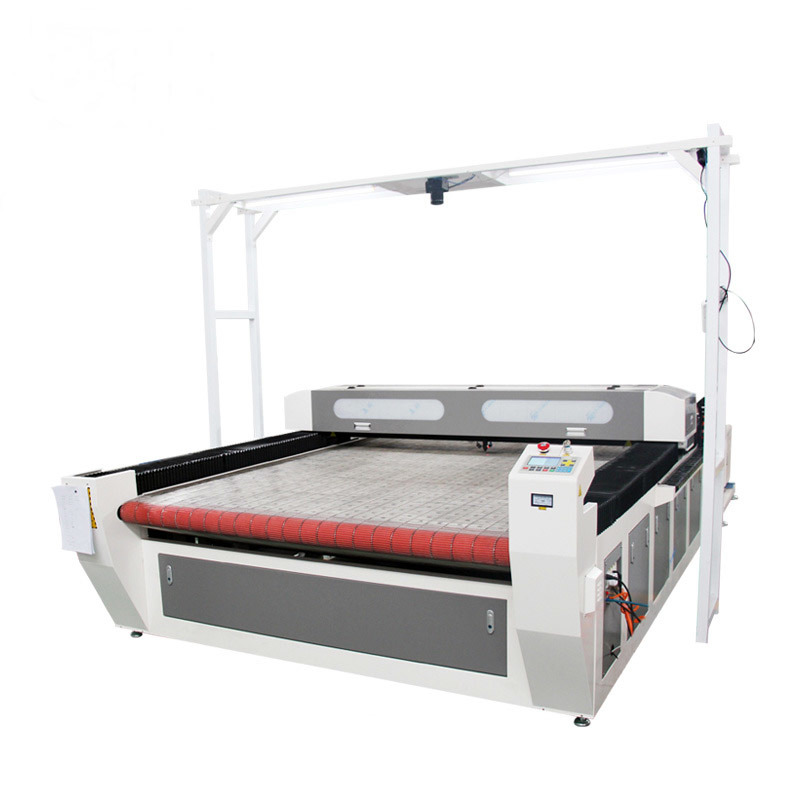

Auto Feeding Laser Cutting Machine for Cloth Fabric Leahter fiberglass fabric 1626
The auto-feeding laser cutting machine is designed for cutting fabric, leather,cloth,paper and other soft materials in rolls, which largely enhances the working efficiency and saves time.
It can be equipped with one, two or four cutting heads and auto feeding system, two or four cutting heads working at the same time. The feeding system can load materials by itself which can save the labor force and cut the cost.
This machine is especially suitable for the mass processing of textile, leather, fiberglass fabric, garment and other soft materials.The machine can cut any curve fast and consecutively. DSP control system makes users can complete the mass production without the connection to the computer.
We can make other sizes according to your requirements.
|Model||Auto Feeding Laser Cutting Machine FLC1626c|
|Working Travel Area||1600*2600mm, 1600mm width with infinity material-feeding|
|Laser-type||Co2 water cooling laser tube|
|Power Adjustment||0-100% controlling, no segment and adjusting by software|
|Machine Control and Drive||Stepper motor|
|Minimum Character||English 1mm*1mm|
|Adjustable Up-down Distance of Laser head||30mm|
|Working Voltage||AC110-220V 50-60Hz|
|Working Environment||Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed|
|Controlling Software Language||English|
|Machine Color||Red and gray or custom made|
|Max Diameter of roller||1.3m|
Engraving and cutting of fabric and leather in garment, embroidery, toy, handbag, glove precision cutting of decoration board and non-mental board, like acrylic and MDF board in ads, upholstery, electrical appliance and plastic industry, cardboard box industry, rubber printing plate engraving. Ultra-thick material surface carving.
