Description
   All Dielectric Aerial ADSS Fiber Optic Cable with Short Span 50m
  Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as  conduit builds.

FTTX All Dielectric Uni Tube Cable with Fiber Glass YarnFTTX All Dielectric Uni Tube Cable with Fiber Glass Yarn

Features

Small size, Low cost.
Up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire and overall glass yarn to enhance tensile resistant.
And protect cable from mechanical damage.
Designed for use with inexpensive attachment hardware.
Self-supported no messenger needed.


Applications

Duct, Aerial
FTTx, Access.



 Optical Characteristics

Fiber Type

G.652

G.655

50/125^m

62.5/125^m

Attenuation

(+20X)

850 nm





<3.0 dB/km

<3.3 dB/km

1300 nm





<1.0 dB/km

<1.0 dB/km

1310 nm

<0.36 dB/km

<0.40 dB/km





1550 nm

<0.22 dB/km

<0.23 dB/km





Bandwidth

850 nm





>500 MHz-km

>200 Mhz-km

1300 nm





>500 MHz-km

>500 Mhz-km

Numerical Aperture





0.200±0.015 NA

0.275±0.015 NA

Cable Cut-off Wavelength λcc

<1260 nm

<1450 nm

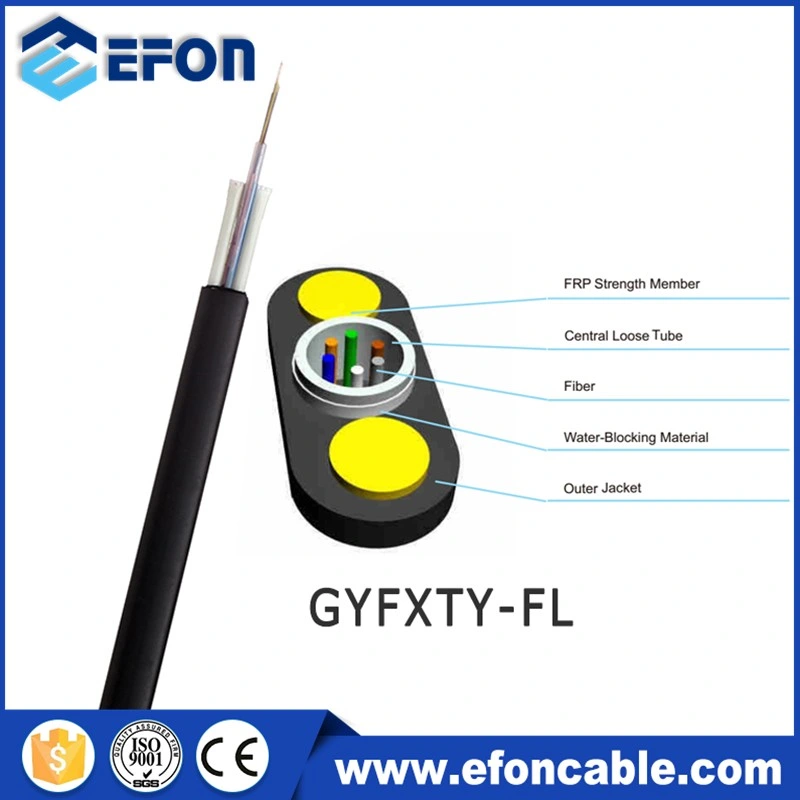

  Structure and Technical Specifications                      GYFXTY-FL(Flat Drop)

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

 (N)

Allowable Crush Resistance
      (N/100mm)

 Aerial Install span with 1%sag

Short Term

Long Term

Short Term

Long TermNESC Light

NESC Medium

NESC Heavy

2~12

4.5*8.0

39

1800

750

2000

800100meters

80meters

50meters

14~24

4.9*8.4

45

1800

750

2000

80080meters

60meters

40meters

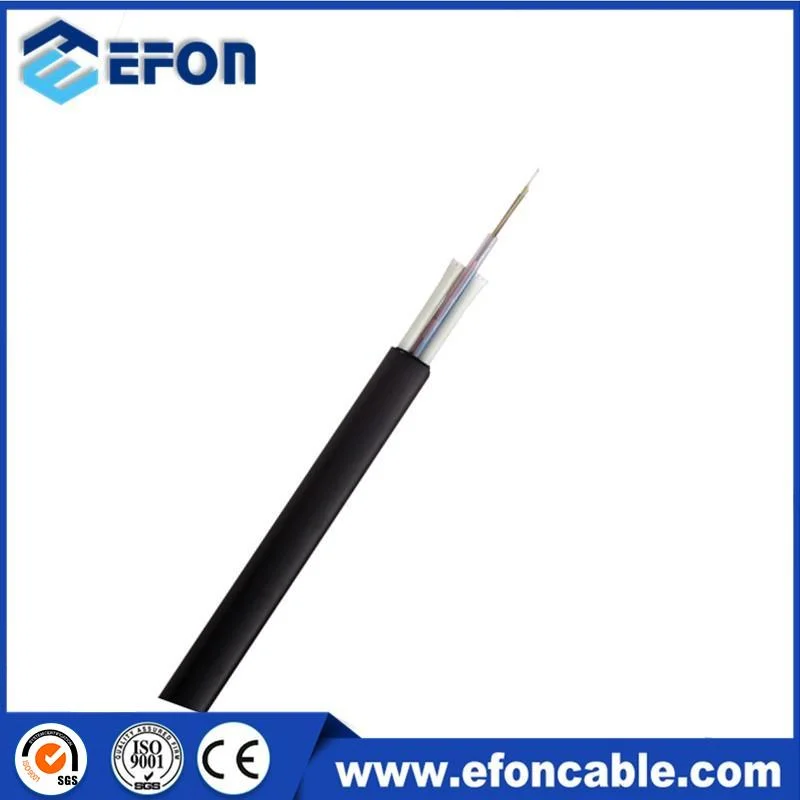

  Structure and Technical Specifications                 GYFXTY-FG(Round Drop)

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

 (N)

Allowable Crush Resistance
      (N/100mm)

 Aerial Install span with 1%sag

Short Term

Long Term

Short Term

Long TermNESC Light

NESC Medium

NESC Heavy

2~12

6.5

35

1000

400

1000

30080meters

50meters

30meters

14~24

7.0

40

1200

500

1000

30070meters

40meters

20meters

Note: Larger spans can be achieved if necessary with installation sags larger than 1% of span.

      This datasheet can only be a reference, but not a supplement to the contract. Please contact our
      sales people for more detailed information.
      Hybrid designs (containing single mode and multi mode fiber) and composite designs (containing
      copper conductors) are also available.



  We produce and tesr cable comply with following standard

Mechanical Performance

Max Tension Performance

IEC 60794-1-2-E

Max. Operation Tension

IEC 60794-1-2-E1

Crush Test

IEC 6079 -1-2-E3

Impact Test

IEC 60794-1-2-E4

Repeated Bending

IEC 60794-1-2-E6

Torsion Test

IEC 60794-1-2-E7

Cable bend

IEC 60794-1-2-E11A

Attenuation Coefficient

ITU-T G.652

Structural Test

IEC-60793-1-20

Environmental Performance

Temperature Cycling

IEC 60794-1-2-F1

Water Penetration

IEC 60794-1-2-F5B

Filing Compound Flow

IEC 60794-1-E14
