High temperature electrical insulating fiberglass tape High quality alkali-free fiberglass insulating tape

PRODUCTS INFORMATIONElectrical Insulation Materials Non-Alkali/Mid-Alkali E-Glass Fiber Tapefiber glass tape is pliable and tacky. Its web structure provides easy unwind without glass strands separation an overlapping.The productcontributes the characteristics of high tensile strength, high resistance to shocks, high modulu

Featured Products

PRODUCTS INFORMATION

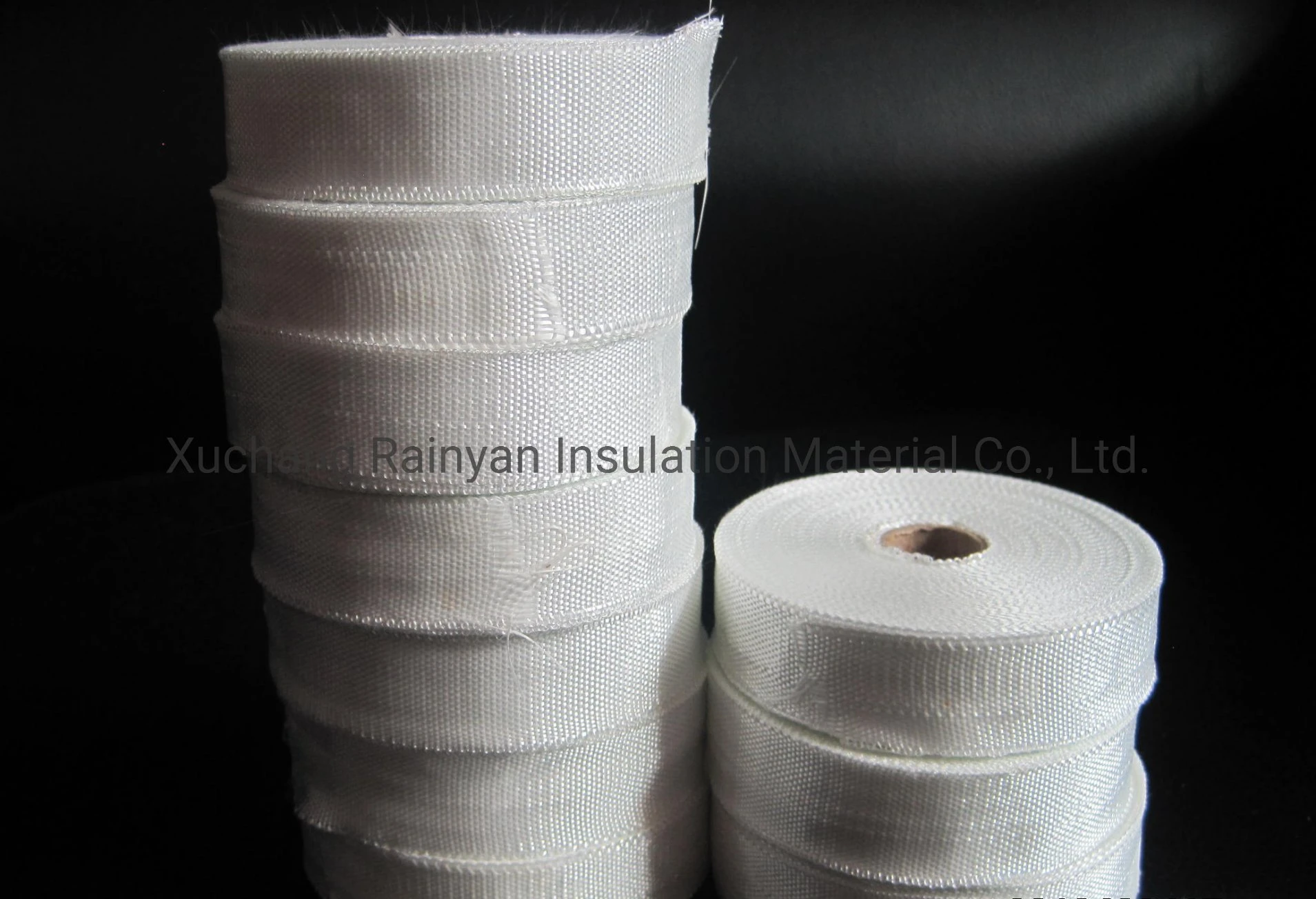

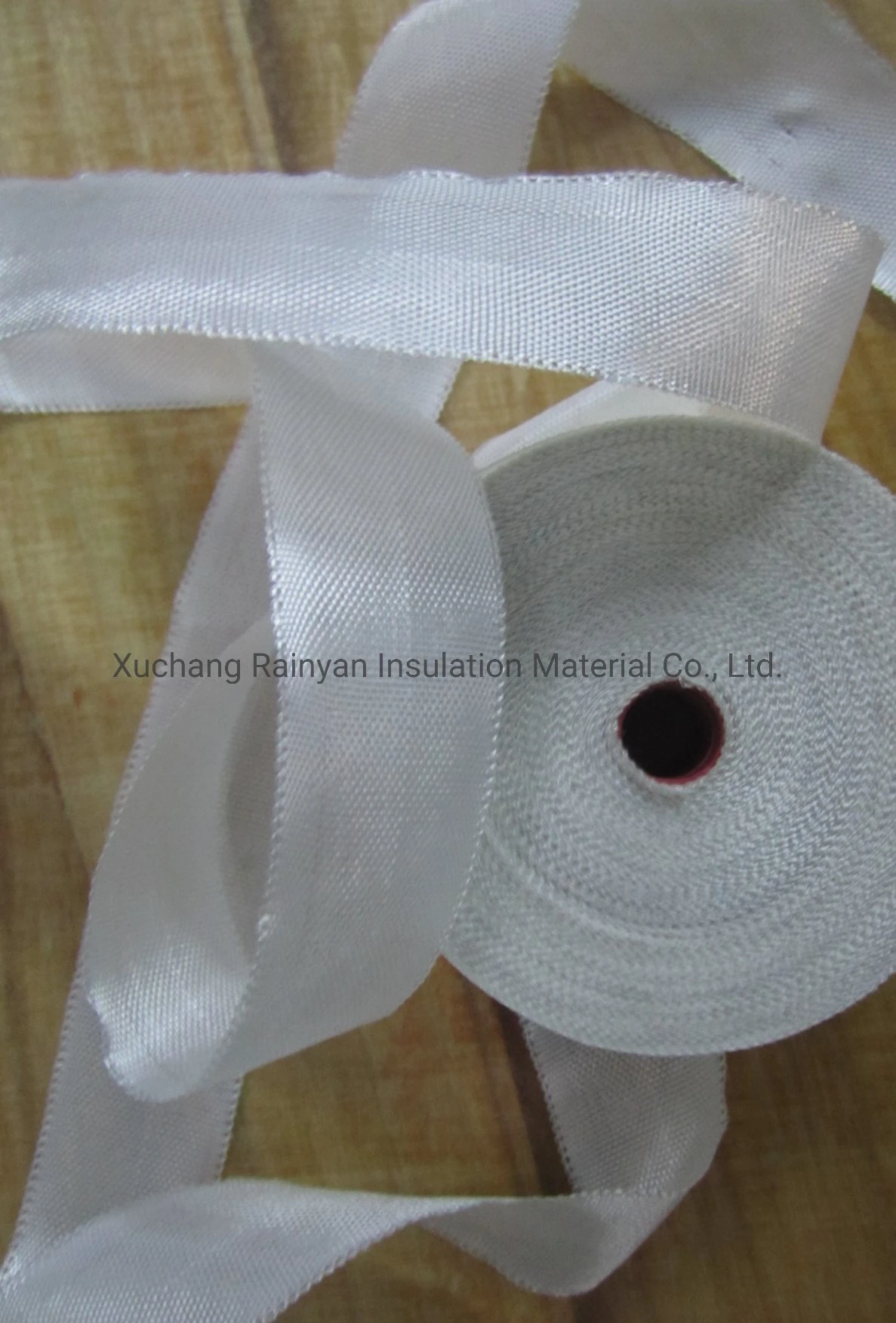

Electrical Insulation Materials Non-Alkali/Mid-Alkali E-Glass Fiber Tape

fiber glass tape is pliable and tacky. Its web structure provides easy unwind without glass strands separation an overlapping.The productcontributes the characteristics of high tensile strength, high resistance to shocks, high modulus of elasticity, dimensional stability as well as no magnetically confining and eddy currents losses.
Thickness:0.06mm;0.1mm;0.13mm;0.15mm;0.2mm;0.25mm etc.
Width:10mm;15mm;20mm;25mm;30mm;50mmmm;........100mm;150mm;
Length:30m,50m,100m,200m
Package:5 rolls or 10 rolls per heat shrinkable film.



product tapeNormal ThicknessNomal widthDensity (end/cm)Breaking strengthLength(m/roll)Texture
Warp Zonal
 tolerance tolerance tolerance tolerance
ET06250.06±0.0125±1.527±222±2130100plain weave
ET(s)10250.1±0.0225±1.527±215±120050
-0.01
ET(s)13200.130.0320±124±212±125050
-0.01
ET(s)17200.170.0320±122±214±130050
-0.02
ET(s)20500.20.0350±220±210±135050
-0.02
ET(s)25380.250.0238±220±210±155050
-0.03
ET(s)30500.30.0250±220±210±165050
-0.03
ET(s)101000.40.02100±320±210±185030
-0.03

First-rate non-alkali fiber glass tape can be widely used as ideal banding materials for electrical motors, transformers and lightning arresters

Application
 High Temperature Electrical Insulation Fiberglass Banding Tape Non Alkali Fiberglass Insulation Tape with High Quality

Products Show

High Temperature Electrical Insulation Fiberglass Banding Tape Non Alkali Fiberglass Insulation Tape with High Quality
High Temperature Electrical Insulation Fiberglass Banding Tape Non Alkali Fiberglass Insulation Tape with High Quality
High Temperature Electrical Insulation Fiberglass Banding Tape Non Alkali Fiberglass Insulation Tape with High Quality
High Temperature Electrical Insulation Fiberglass Banding Tape Non Alkali Fiberglass Insulation Tape with High Quality


Company Inforamtion

Xuchang Ruiyuan insulation material co.,ltd insist on the
idea " GOOD QULAITY, GOOD SERVICE ". it is establish 20years old.
It is located in Xuchang City, Henan Province, China. From 2010 year old our company begin deal international trade, based on the original business. Till now we import and export to many contries, such as United Kingdom, Germany, France, Ukrain, Bulgaria, Italy, India, Pakistan, Bangladesh, Korea, Brzil and so on.
 Our manufacturing technique is leading in this field and well known in the world. Now there are more than 20 product facilities, and 105 staff, including 5 senior technical, 20 intermediate technical. Main products are manufactured on international standard.
Our products mainly used for transformer and electrical motor, we produces insulation paper, insulation board, insulation tape,insulation film and also sales PTFE  FR4 PA6 and cable wire.
    We will develop with you by best-quality products, warm-hearted service and mutually beneficial cooperation!
