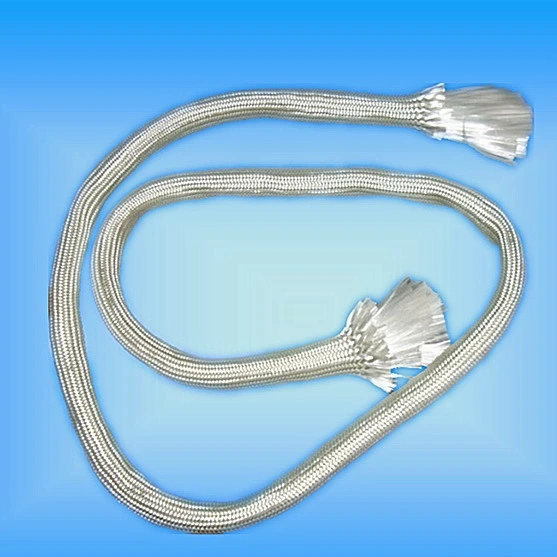

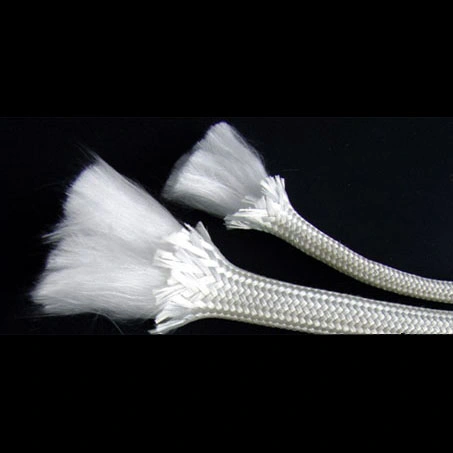

Surge ropes are comprised of 'E' class fiberglass yarn cores with a spun polyester fiber overbraid. The polyester braid provides a dry, user friendly jacket which eliminates the need to directly handle glass fibers during installation. It is designed for surge ring and other structural applications requiring a rigid insulating and high mechanical strength material.
Size:
| ITEM NO. | DIAMETER (MM) | TOLERANCE (MM) | WEIGHT (G/M) | PACKAGE (M/SPOOL) |
| LT-DBS05 | 5.0 | ±1 | 13-16 | 200 |
| LT-DBS07 | 7.0 | ±1 | 19-24 | 200 |
| LT-DBS09 | 9.0 | ±1 | 30-38 | 100 |
| LT-DBS11 | 11.0 | ±1 | 41-50 | 100 |
| LT-DBS14 | 14.0 | ±1 | 58-72 | 60 |
| LT-DBS16 | 16.0 | ±1 | 72-88 | 50 |
| LT-DBS18 | 18.0 | ±1 | 90-110 | 50 |
| LT-DBS20 | 20.0 | ±1 | 124-152 | 150 |
| LT-DBS25 | 25.0 | ±1 | 160-200 | 100 |
| LT-DBS28 | 28.0 | ±1 | 225-275 | 75 |
| LT-DBS30 | 30.0 | ±1 | 248-303 | 75 |
| LT-DBS35 | 35.0 | ±1 | 333-407 | 50 |
| LT-DBS40 | 40.0 | ±1 | 369-451 | 50 |
| LT-DBS50 | 50.0 | ±1 | 515-630 | 35 |
| LT-DBS60 | 60.0 | ±1 | 747-913 | 20 |
Remark:
Special package, sizes and weights can be supplied.
Test Report: LT-DBS07 (Diameter 7.0mm)
| Test Content | Test Method | Standard | Test Value | Result |
| Diameter | Perimeter in natural state/3.14 | 6mm-8mm | 6.68mm | OK |
| Braiding pitch | Pitch length/3cm | 15-19 | 17 | OK |
| Weight | Weight per meter | 19-24g | 21.3g | OK |
| Filling Material | No. of glass yarn | 6 | 6 | OK |
| Thermal resistance | After heating(175ºC, 24h) | No crack in appearance | Pass | OK |
| Tensile Strength | Longitudinal break strength | >800 lbs | Pass | OK |
