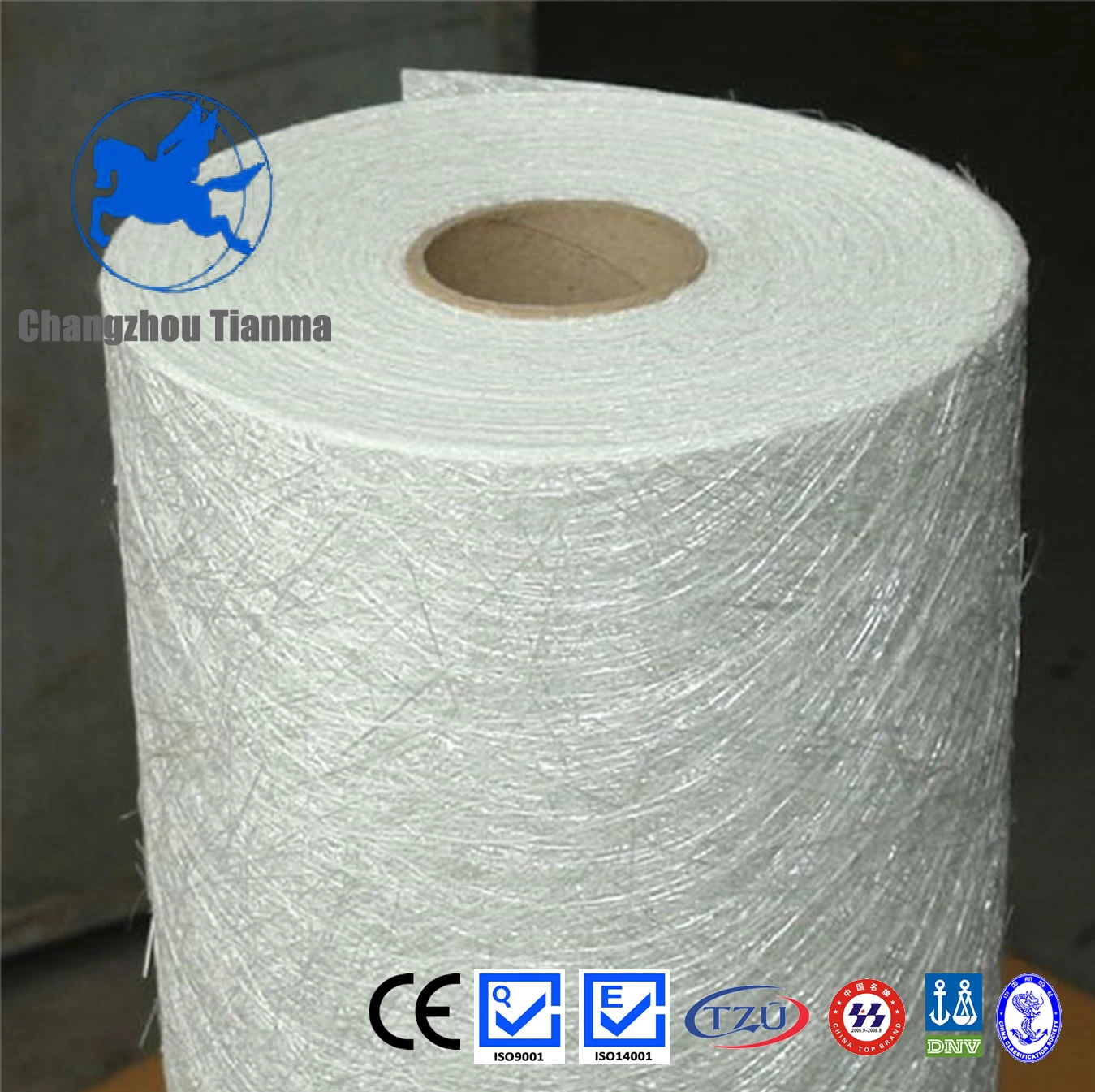

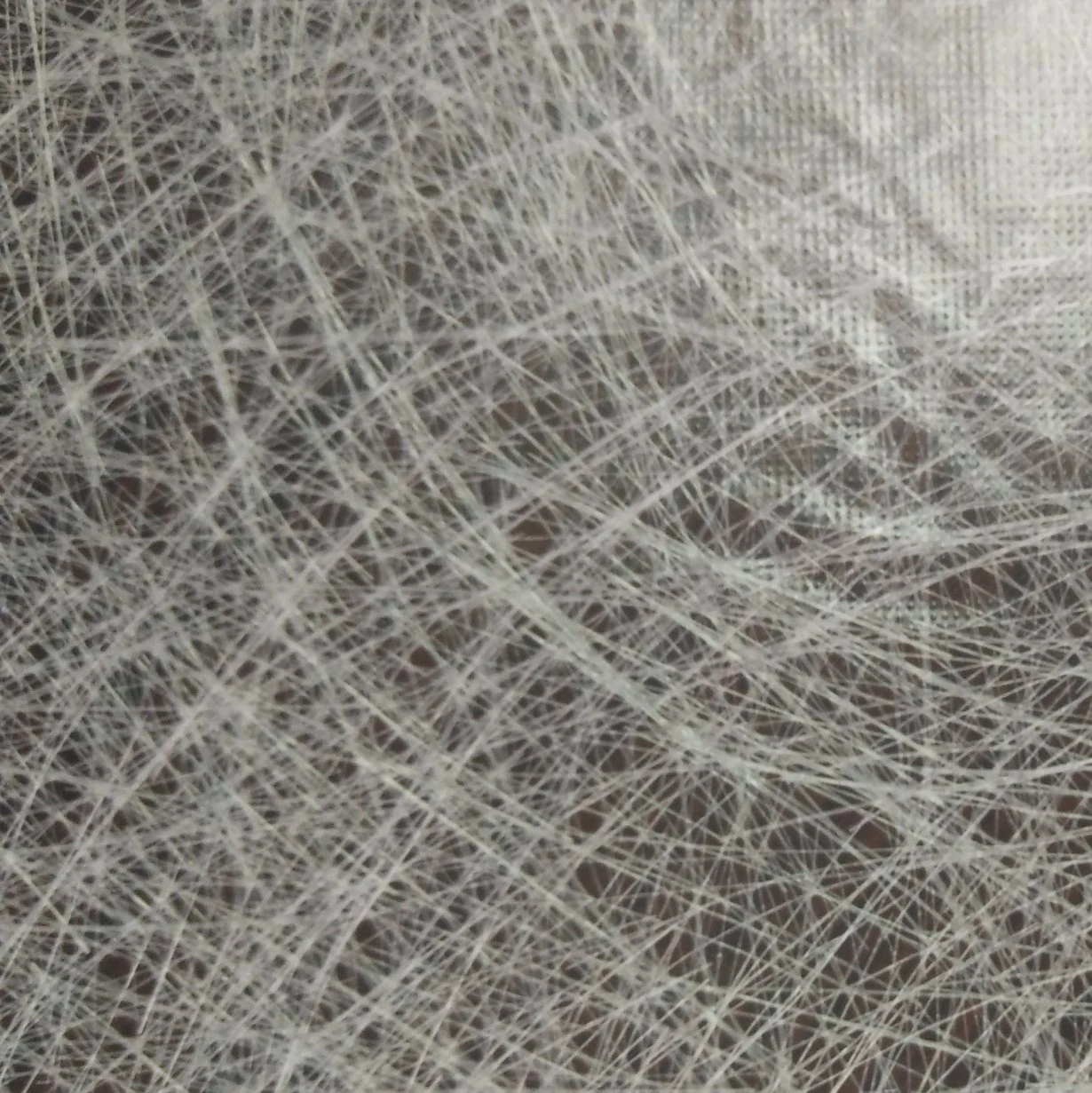

Brief Introduction:Our Chopped Strand Mat is fine strand reinforcement material made from E-glass cut fibers laid in a random pattern and bonded with powder or emulsion binder.
It is specially designed for hand lay-up and continuous laminating process. It is easy to handle and has excellent molding performance.
It is an excellent reinforcement material for translucent roofing panel, chemical storage tanks, FRP pipes, boat hulls and decks, truck body panel .
Product Features:
Excellent weight uniformity
Fast wet out
Easy air release
Excellent transparency of finished products
Excellent laminate clarity
Low resin consumption
Technical Specification:
Standard Weight Chopped Strand Mat
| Property | Area Weight (%) | Moisture Content (%) | Binder Content (%) | Tensile Strength (N/150mm) | Width (mm) |
| Test Method | ISO3374 | ISO3344 | ISO1887 | ISO3342 | ISO 5025 |
| EMC225 | -5.0±10.0 | ≤0.20 | 4.7±0.9 | ≥30 | ±5 |
| EMC300 | -5.0±10.0 | ≤0.20 | 4.0±0.9 | ≥50 | ±5 |
| EMC450 | -5.0±10.0 | ≤0.20 | 3.7±0.8 | ≥70 | ±5 |
| EMC600 | -5.0±10.0 | ≤0.20 | 3.7±0.8 | ≥80 | ±5 |
| EMC900 | -5.0±10.0 | ≤0.20 | 3.5±0.8 | ≥90 | ±5 |
Light Weight Chopped Strand Mat
| Property | Area Weight (%) | Moisture Content (%) | Binder Content (%) | Tensile Strength (N/150mm) | Width (mm) |
| Test Method | ISO3374 | ISO3344 | ISO1887 | ISO3342 | ISO 5025 |
| EMC85 | 85 | ≤0.20 | 9±5 | ≥50 | ±5 |
| EMC100 | 100 | ≤0.20 | 9±5 | ≥70 | ±5 |
| EMC120 | 120 | ≤0.20 | 9±5 | ≥100 | ±5 |
Note: It's available with a width range from 50mm-3300mm. Other specifications are also available on customer requests.
Packing & Storage:
Roll width: Standard width is 1040mm and 1250mm. Other width available upon request.
Packing: The product is wound tightly into a roll on a paper core. Each roll is wrapped into a plastic bag and placed in a carton box or wooden case.
Storage condition: Unless otherwise specified, it is recommended to store fiberglass chopped strand mat in a cool and dry condition. The product must remain in packaging material until just prior to its use.
Application:
It is uniformly bounded by powder or emulsion binder applying for hand lay-up,RTM continous moulding etc. Mainly suitable for UP resin,vinyl ester resin,such various sheets and panel,boat hulls, bath, tubs, cooling towers,anti-corrosion,vehicles etc.
