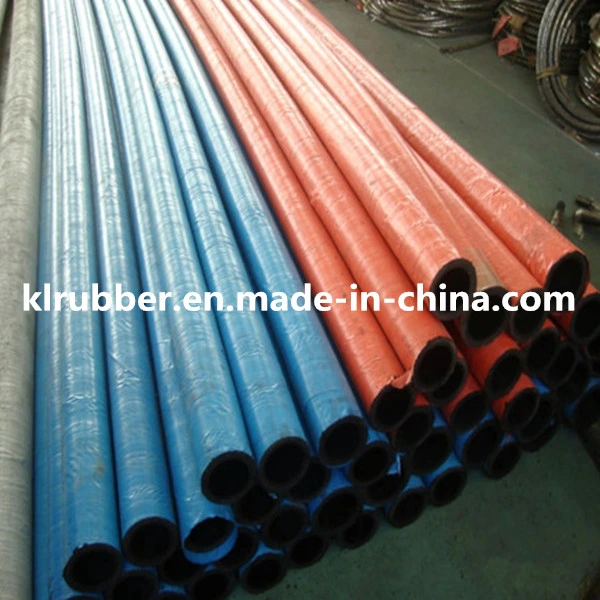

Acid Alkali Resistant Rubber Hose for Acid & Alkali Suction
1.Application
It is used for the delivery of acid(alkali) with the temperature no more than 45C and the density is below 40C(except nitric acid)
2.Character
The rubber layer has good performance of acid(alkali) erosion.The burst pressure is at least fourfold than the working pressure .
3.The I.D,O.D,W.P and B.P of abrasive acid alkali rubber hose is able to produce as per the customers' requirements.The maximum I.D is up to 500mm,the maximum length is up to 100meters.
4.Our factory also produces armored rubber hose according to client requirement.
Sheet of the acid alkali resistant rubber hose
I.D | O.D | W.P | Number of layers | B.P |
| mm | mm | mpa | plies | mpa |
| 12.5 | 23 | 3 | 1 | 9 |
| 16 | 26 | 3 | 1 | 6 |
| 20 | 29 | 2.5 | 1 | 7.5 |
| 22 | 32 | 2.5 | 1 | 7.5 |
| 25 | 35 | 2 | 1 | 6 |
| 31.5 | 43 | 1.6 | 2 | 4.8 |
| 40 | 50 | 1.6 | 2 | 4.8 |
| 50 | 62 | 1.5 | 2 | 4.5 |
| 57 | 70 | 1.2 | 2 | 3.6 |
| 64 | 78 | 1.2 | 2 | 3.6 |
| 76 | 90 | 1 | 3 | 3 |
| 89 | 106 | 1 | 3 | 3 |
| 102 | 120 | 1 | 3 | 3 |
