EMC250e, E-Glass Fiberglass Chopped Strand Mat

Brief Introduction:Our Chopped Strand Mat is fine strand reinforcement material made from E-glass cut fibers laid in a random pattern and bonded with powder or emulsion binder.It is specially designed for hand lay-up and continuous laminating process. It is easy to handle and has excellent molding performance.It is an excellent

Featured Products

EMC250e, E-Glass Fiberglass Chopped Strand MatEMC250e, E-Glass Fiberglass Chopped Strand MatBrief Introduction:

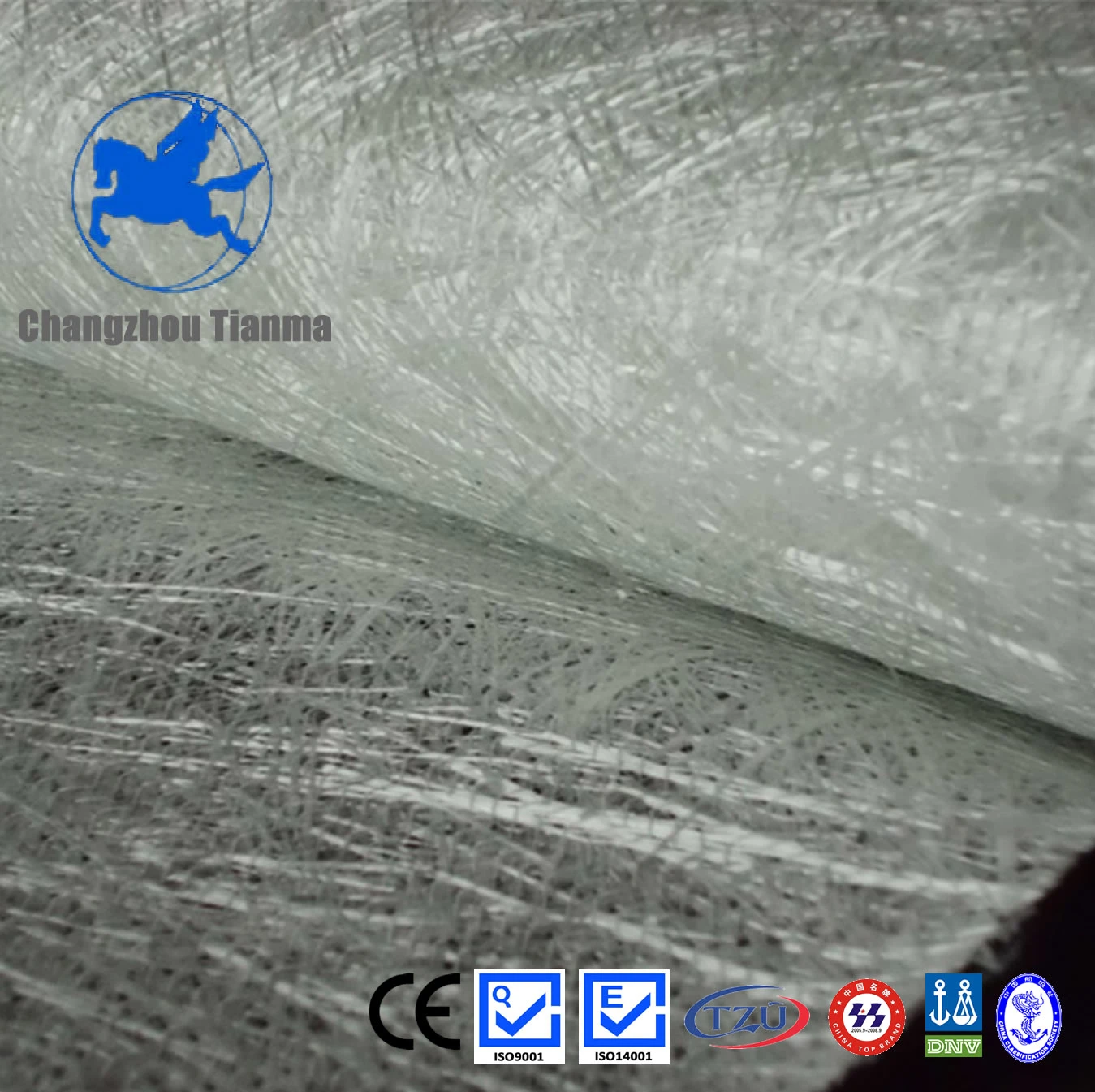

Our Chopped Strand Mat is fine strand reinforcement material made from E-glass cut fibers laid in a random pattern and bonded with powder or emulsion binder.
It is specially designed for hand lay-up and continuous laminating process. It is easy to handle and has excellent molding performance.
It is an excellent reinforcement material for translucent roofing panel, chemical storage tanks, FRP pipes, boat hulls and decks, truck body panel .

Product Features:
Excellent weight uniformity
Fast wet out
Easy air release
Excellent transparency of finished products
Excellent laminate clarity
Low resin consumption
Technical Specification:

  Technical Specification:

  Light Weight :
PropertyArea Weight (%)Moisture Content (%)Binder Content (%)Tensile Strength (N/150mm)Width (mm)
Test MethodISO3374ISO3344ISO1887ISO3342ISO 5025
EMC80-5.0±10.0≤0.209±5≥20±5
EMC100-5.0±10.0≤0.209±5≥20±5
EMC120-5.0±10.0≤0.209±5≥20±5
 EMC250e, E-Glass Fiberglass Chopped Strand Mat
Standard Weight:
PropertyArea Weight (%)Moisture Content (%)Binder Content (%)Tensile Strength (N/150mm)Width (mm)
Test MethodISO3374ISO3344ISO1887ISO3342ISO 5025
EMC225-5.0±10.0≤0.204.7±0.9≥30±5
EMC300-5.0±10.0≤0.204.0±0.9≥50±5
EMC450-5.0±10.0≤0.203.7±0.8≥70±5
EMC600-5.0±10.0≤0.203.7±0.8≥80±5
EMC900-5.0±10.0≤0.203.5±0.8≥90±5
EMC250e, E-Glass Fiberglass Chopped Strand Mat
Note: It's available with a width range from 50mm-3300mm. Other specifications are also available on customer requests.

Note: It's available with a width range from 50mm-3300mm. Other specifications are also available on customer requests.
Packing:

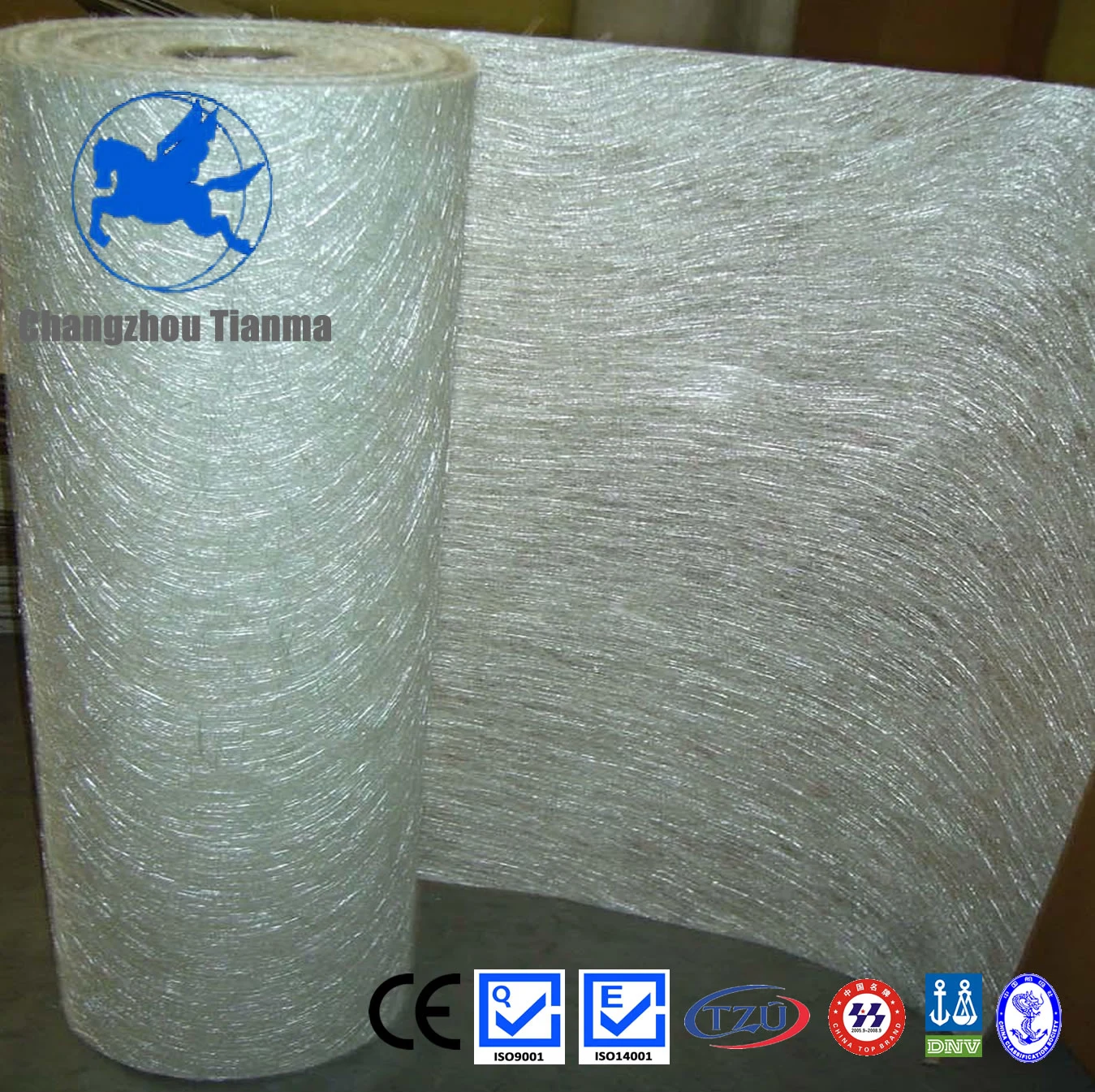

The product is wound tightly into a roll on a paper core. Each roll is wrapped into a plastic bag and placed in a carton box or wooden case.
Storage:
 Condition: Unless otherwise specified, it is recommended to store fiberglass chopped strand mat in a cool and dry condition. The product must remain in packaging material until just prior to its use.
