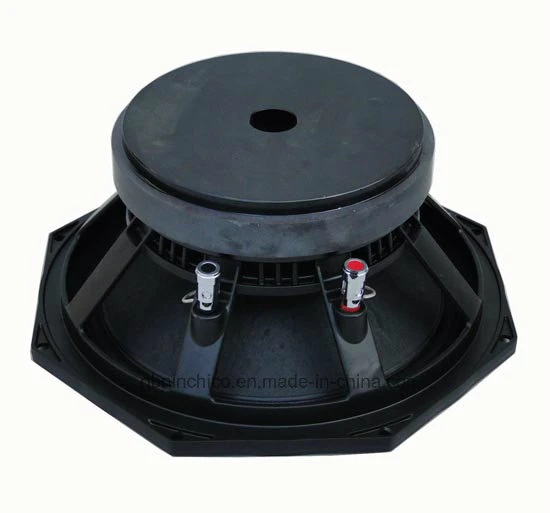

PW1045-64

LF Drivers - 10 Inches

600 W Power handling capacity

64mm(2.5 in) Glass Fiber voice coil

60 - 4000 response

96 dB sensitivity



Specification

Nominal Diameter 250 mm ( 10 in)

Nominal Impedance 8 ohm

Nominal Power Handling (AES) 300 W

Continuous Power Handling 600 W

Sensitivity(1W/1m) 96 dB

Frequency Range 50 - 4000 Hz

Voice Coil Diameter 64 mm (2.6 in)

Magnet Material 61 OZ (1726g)



Mounting&Shipping

Overall Diameter 279 mm (11in)

Bolt Circle Diameter 265 mm (10in)

Baffle Cutout Diameter 235 mm (9in)

Depth 115 mm (5 in)

Flange and Gasket 12 mm (0.5in)

Net Weight 4.7 kg (10lb)

Shipping Weight (1 units) 6 kg (13lb)

Shipping Box (1 units) 290x290x150 mm



Parameters

Fs--------- 48 Hz

Re--------- 6.2 ohm

Qes--------- 0.36

Qms--------- 4.1

Qts---------- 0.35

Sd----------- 349 CM

Xmax--------- ±4

MmS---------- 44 g

Bl-------------- 16.4 Txm
